Firmware version variant:
| Text version | Matrix version |
 |
 |

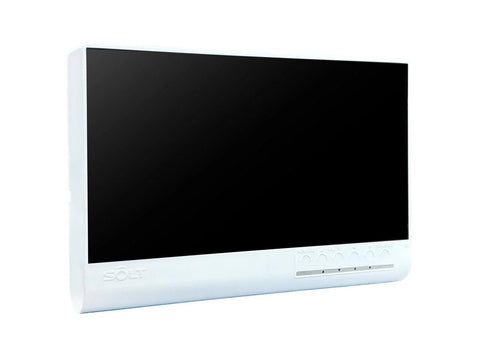

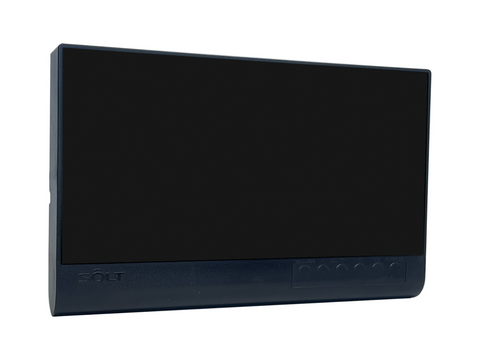

Display SM7 is the senior model in the SOLT line. This is not just a call board, but a compact LED display for displaying the latest calls, statuses, short messages and events in real time.
Two versions — for different tasks
The SM7 display is available in two versions, each of which is optimized for its own usage scenario.

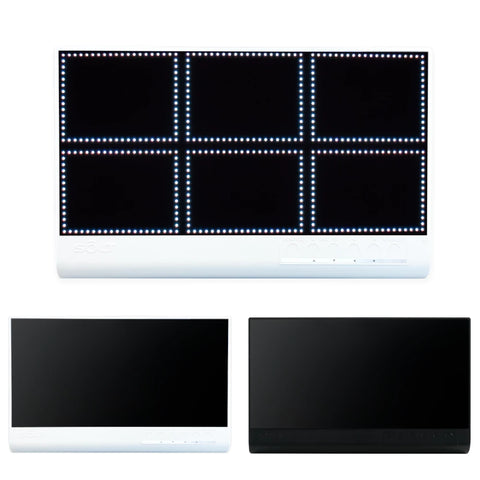

Matrix version
The matrix display is a tool for visually tracking call dynamics. It simultaneously displays up to 6 recent events, allowing staff to quickly assess the current situation. This format is especially convenient for restaurants, cafes, production areas and service departments, where reaction speed and instant visual orientation are important.
The key feature is color coding. The color of the number or symbol can indicate the type of event:
Red - a new order from the table
White - please bring the bill
Yellow - help in WC or service request
Blue – a signal from the kitchen (for example, the dish is ready for table No. 5)
Colors are selected by the user from 7 bright, well-distinguished shades. Photos do not always convey real perception - when viewed from a working distance, the display looks like a modern, technological solution with a very clean and readable indication.
Text version
The text version of the display is focused on scenarios where a clear and unambiguous status is important. It is suitable for medical offices, offices, studios and any premises where it is necessary to quickly convey the current state:
"Busy / Free"
"Reception in progress"

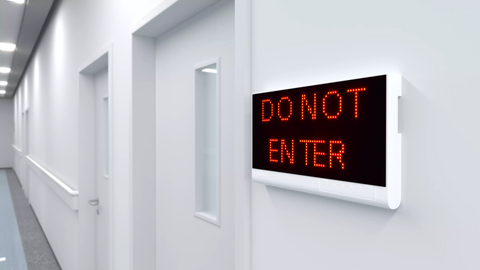

"Do not enter"
"Please wait"
The text capabilities of this version are wider than those of the matrix, which makes it the best choice for informing visitors and customers.
Display options
Up to 7 characters for each button
Scrolling line - up to 15 characters
Display of statuses and calls with automatic rotation
Autonomy and customization
SM7 works completely autonomously, without a permanent connection to a PC or server - this simplifies implementation and increases system reliability.
A USB connection and a browser are used for easy configuration. Through the SOLTMETA service, you can quickly set the logic of the display and save the configuration.
Basic settings are also available directly from the buttons on the display, but with a large number of statuses, the web interface remains the most convenient option.
SOLT SM7 is a flexible display that easily adapts to the task: from simple call indication to visual process control.
